Small Incinerator for Medical Waste

Characteristics

  • Incinerating for Medical Waste (Diapers, Needles, Syringe, organ, gloves, robes)
  • Eco-friendly (Low dioxins and harmful substances by double combustion)
  • Long lifespan (Strong structure, Fireproof)
  • Easy maintenance (Packing, Parts of buner)
  • Easy operation (Button, Input, Removal ash)
  • Processable high moisture waste (First burner)

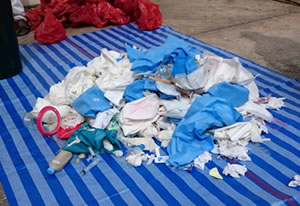

Medical Waste (before combustion)

Medical Waste (before combustion)

Combustion

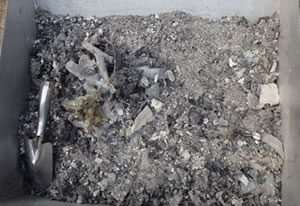

Medical Waste (after combustion)

Medical Waste (after combustion)

Products

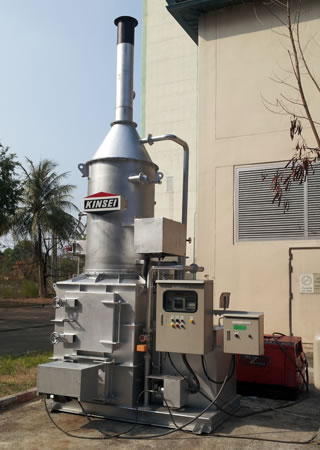

Continuous Charged (HKR type)
Continuous Charged (HKR type)
  • Direct combustion Gasification combustion
  • Continuous a small amount charged

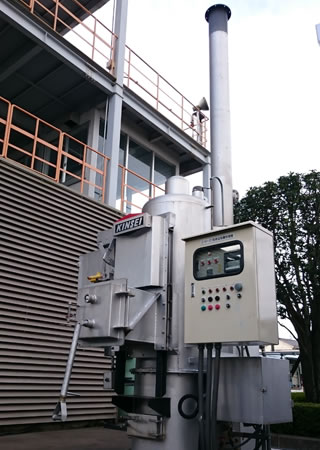

Batch Inputted (MGB type)
Batch Inputted (MGB type)
  • Gasification combustion
  • Automatic operation

Specification

Type Ability(kg/hr) Installation
area(m)
Height
(m)
Fuel Power(kW)
HKR-10 50kg/8hr 1.7×2.1 3.7
  • ・Kerosene
  • ・Heavy oil
  • ・Diesel
  • ・LPG
  • ・LNG
0.4
HKR-20 150kg/8hr 1.7×2.1 4.5 0.75
HKR-30 240kg/8hr 1.7×2.3 5.0 1.5
HKR-40 320kg/8hr 1.7×2.6 5.3 1.5
MGB-100H 100kg/5hr 1.9×3.0 4.8 0.75
MGB-200H 200kg/5hr 2.1×3.3 6.0 1.5
Type First Furnace
(m³)
First burner(kW) Second Furnace
(m³)
Second burner(kW)
HKR-10 0.19 40.0 0.08 40.0
HKR-20 0.23 40.0 0.08 40.0
HKR-30 0.27 40.0 0.08 40.0
HKR-40 0.31 40.0 0.08 40.0
MGB-100H 1.0 116 0.22 174
MGB-200H 2.0 116 0.44 232
